400 550 650 800 1000 W Watt 12/24 V 3/6 Blades Wind Turbine

Wind Generator

Please choose one Wind Generator from the model menu


Below are Details for each model:

Apollo 550W 12V DC ( 3 Blades)
Wind Turbine for Land or Marine Use

Product designed in Canada

Introduction

Over the last few decades renewable energy has started to gain its ground. Of all the different kinds of alternative energy sources available, the use of wind power has been growing steadily. However, wind turbines that are available for homeowners in the market today are mostly designed (or copied) a decade ago and although they work, most have mechanical flaws that were neglected since their debut and there is a lot of room for improvements. With that in mind, we have redesigned a new wind turbine - the Apollo. Built-in with a stronger alternator for higher power output, Anti-vibration system to increase power efficiency, and the ability to be customized and upgraded for the future.

Exploded View
(No inverter, batteries, turbines and solar panels included in this listing)

What is the difference in an Apollo Wind Turbine?

GreenergyStar's Apollo Wind Turbine is the most mechanically advanced generator in the market today. It features many upgrades that solves performance issues that our competitors struggle with. It is designed to work with other GreenergyStar branded products such as the SolarWind Hybrid RX charge controller and grid tie inverters to better utilize the renewable energy generated. The following list will summarize its major features:

I. Performance

Curves

The above battery charging power curve is obtained from charging a 12V 100Ah battery bank with

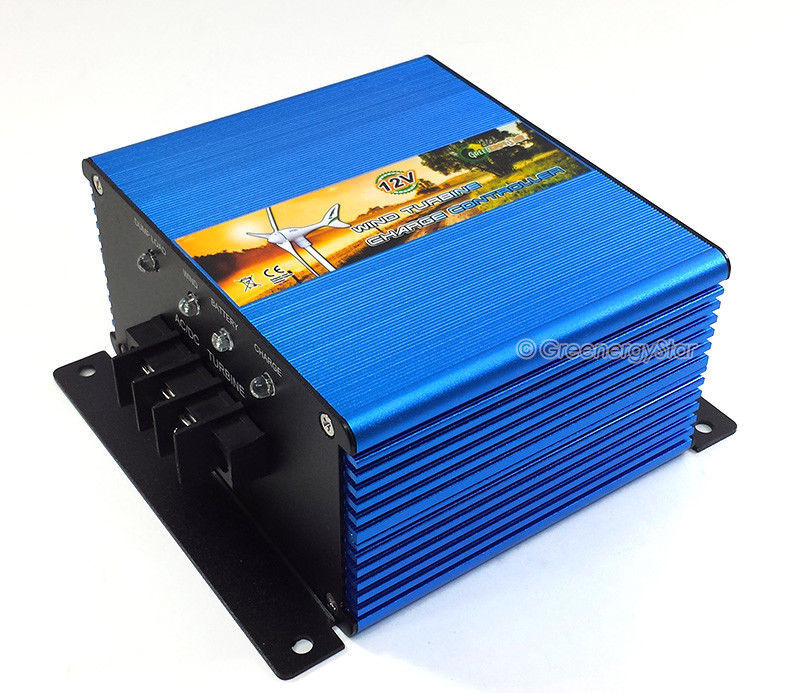

our SolarWind Hybrid Charge Controller (not included in this listing)

Installation Reference - not to scale - for reference only
(Inverters, batteries, controller, solar panels are not included in this listing. ) Blade Features

- Color: White
- With 49" swept area when mounted on a 5" Hub
- Incorporates highly efficient, true airfoil
- Quiet performance with minimal vibration
- Can generate 800 watts or more depending on PMA efficiency
- Manufactured using a precision injection molding process that produces blades of exceptional consistency
- Made with new thermoplastic to increase durability
- Smoother and more durable than any blades you can find in the market
- Adjustable blade degree with included degree adjusters / shims (see picture below)
- High resistance to bending (over 150 degrees)

What is Nylon 6.6?

Nylon is a man made product. On the man made side, you will see primarily three types of thermoplastic. These are polyester, polypropylene, and nylon. Of the three types, nylon is by far the better choice.

Nylon is extremely versatile in its applications. It is highly resistant to abrasion and has excellent resilience.
Within nylon, there are two groups: nylon 6 and nylon 6.6. Nylon 6.6 is the premium thermoplastic. It is the thermoplastic that is most often specified by professional architects and designers because it provides the flexural strength, low-temperature toughness, UV Resistance and is the most resilient. Nylon 6.6 performs well in many applications such as wind turbine blades, automotive parts, and other fields that get a lot of wear and tear. Nylon 6.6 has additional molecules that give extra strength and the resilience compared to nylon 6. If you still have no idea what Nylon 6.6 is, do a search on google.

Adjustable blade degree with included degree adjusters (Shims)

Increase/decrease blade angle by installing degree adjuster under the blades
"+" on the right side = Increase angle = More Torque, Less Speed
"-" on the right side = Decrease angle = Less Torque, More Speed

Nylon Blades Specification

Material

Nylon 6.6 + Carbon Fiber (<20%)

Length

23.5 inches

Width (base)

5 inches

Mounting 6mm bolts

Weight (per blade)

166g, 6oz

Rotor Feature
Apollo Competitor's Pros
- 20mm rotor thickness, 66% more compare to competitor's
- Stronger Magnetic flux due to thicker rotor, and thus, more Power
- Evenly spread magnets decrease magnetic drag
- 6 balanced hole to reduce weight
- Reduce forces required to start rotor due to less reciprocation mass
- Brushless Permanent Magnet Alternator
Cons
- only 12mm in rotor thickness and thus weaker magnetic flux
- Magnets are not evenly spread out (ie: screw at top)
- No weight reduction = harder start up

Rotor Specification

Rotor Diameter

77mm

Magnet Material

Rare Earth Neodymium magnets

Number of Magnets

12

Magnet Width (Rotor thickness) 20mm

Weight

682g

Body Specification

  Material Aluminum (with coating)   Length 62 cm   Tail Height 33 cm   Tail surface Area 225 cm^2   Upgradable with 29" blades Yes   Blades allowed 6

Hub Specification

Pros
- 140mm diameter, 10% larger than competitor's
- High blade capacity, allow up to 6 to be installed
- Covers the entire face plate to eliminate vortex
Cons
- 125mm in diameter
- Only allows 3 blades to be installed
- Does not cover face plate completely
  Material Aluminum (with coating)   Diameter 140 mm   Capacity 6 Blades   Compatibility Air-X, 403, 303   Shaft Diameter for 17mm shaft   Disc Thickness 23mm

II. Anti-Vibration System

Horizontal
Apollo   Competitor's   Pros
- Dual Metal ball bearing located
at front and rear of rotor
- 5.5cm of stabilizing distance to prevent
rotor and blades from vibrating
- No vibration = Increase in efficiency
- Reduction in noise output
  Cons
- 2 bearings placed side by side together
- Stabilizing distance effectively
shorten to 2cm (63% reduction)
- Vibration = Energy wasted
- Wasted energy gets converted to Noise and Heat


Vertical
Apollo   Competitor's   Pros
- Dual Metal ball bearing to prevent vertical vibration
- Yaw shaft diameter: 40mm
- 3cm of stabilizing distance with 2 bearings
- No vibration = Increase in efficiency
- Reduction in noise output
- One piece design Yaw body provides more stability
  Cons
- Single bearings will not eliminate vertical vibration
- Yaw shaft diameter: 35mm
- Stabilizing distance effectively shorten to 1.4cm with one bearing (53% reduction)
- Vibration will cause bearing to grind on yaw shaft and create a bigger play, which in turn will cause more vibration in a never ending cycle
- 2 pieces design Yaw body is less stable

III. Anti-Leak System

Apollo   Competitor's   Pros
- Unlike rubber, PVC Rings are much more durable will not harden and crack and cause leaks
- Bearing are covered and will not rust / leak
  Cons
- Rubber ring will harden after approximately 1 year of use and will start cracking and leaking
- Bearing are exposed and will rust / leak

IV. Generator Specification

Body Material Aluminum

Rotor Diameter 124.5cm (49 inches)
Starting Wind Speed 3.5m/s (8 mph)

Rated Wind Speed 13m/s
Survival Wind Speed 45m/s
Voltage 12 V DC
Rated Power 450W

Maximum Power 550W
Weight 7.88kg (17.39 lb)
Yaw Body / Tower Mount
Inner Diameter 53.3mm, 2.1 inch
Recommended Tower (Pipe) Size 1.5 inch schedule 40 pipe
Actual Pipe diameter: 48mm (1.9 inch)
Recommend adding 2.5mm padding

What are included:

-1 Apollo Wind Turbine
- 3x Blades
- Hub with 6 lots
- Nose Cone
- Screws and Nuts
- Degree Adjuster
- Allen Key
- Instruction Manual

Apollo 650W 12V-24V AC ( 6 Blades )
Wind Turbine for Land or Marine Use

Product designed in Canada

I. Performance

Slip Ring

For those who are serious about wind power generation, this is a must have item. Never again will the cable get twisted up. Never again will you have to climb up the ladder and fix the tangles. Get a slip ring today and you can put all of that behind you.

Slip Ring Specification:

Circuits 3
Voltage 380VAC/DC
Maximum Current 60A X3

Rated Current 40A X3

Working Speed 250RPM
Temperature -40'C to 100'C
Wire Gauge 6AWG
Number of bearings 2
Thread M22x1.5
22mm diameter
1.5mm Thread Pitch

Features:

- High voltage / current carrying capacity
- Copper-graphite brushes ensure long life even under extreme load conditions
- Quick connector for fast connection to the AC / DC wind turbine *see reference picture below*
- Insulated with fiberglass sleeves to protect wires to the wind turbine and make the installation professional and tidy
- Easily taken apart for quick maintenance
- 2x High Quality Metal Sealed Ball bearing to stabilize axle

Exploded View

Connection Overview

As we can see from the exploded view, the top circuit is color coded Red, the middle circuit is Black and the bottom circuit is Blue.


Curves

The above battery charging power curve is obtained from charging a 12V 100Ah battery bank with
our SolarWind Hybrid Charge Controller (not included in this listing)

II. Anti-Vibration System [Same as above]
III. Anti-Leak System [Same as above]

IV. Generator Specification

Body Material Aluminum

Rotor Diameter 124.5cm (49 inches)
Starting Wind Speed (6 blades) 3.0m/s (7 mph)

Rated Wind Speed 13m/s
Survival Wind Speed 45m/s
Voltage 12 V-24V AC

Rated Power 550W

Maximum Power 650W
Weight 8.28kg (18.25 lb)
Yaw Body / Tower Mount
Inner Diameter 53.3mm, 2.1 inch
Recommended Tower (Pipe) Size 1.5 inch schedule 40 pipe
Actual Pipe diameter: 48mm (1.9 inch)
Recommend adding 2.5mm padding

What are included:

-1 Apollo Wind Turbine
- 6x Blades
- Hub with 6 lots
- Nose Cone
- Screws and Nuts
- Degree Adjuster
- Allen Key
- Instruction Manual

Apollo 800W 12V-24V AC (6 Blades)
Wind Turbine for Land or Marine Use

Product designed in Canada

I. Performance

Curves

The above battery charging power curve is obtained from charging a 12V 100Ah battery bank with our SolarWind Hybrid Charge Controller.
(not included in this listing)

II. Anti-Vibration System [Same as above]
III. Anti-Leak System [Same as above]

IV. Generator Specification

Body Material Aluminum

Rotor Diameter 152.4cm (60 inches)
Starting Wind Speed 3.0m/s (7 mph)

Rated Wind Speed 13m/s
Survival Wind Speed 45m/s
Voltage 12 V-24V AC
Rated Power 700W

Maximum Power 800W
Weight 8.8kg (19.4 lb)
Yaw Body / Tower Mount
Inner Diameter 53.3mm, 2.1 inch
Recommended Tower (Pipe) Size 1.5 inch schedule 40 pipe
Actual Pipe diameter: 48mm (1.9 inch)
Recommend adding 2.5mm padding

What are included:

Apollo 29" Extended Blades and Tail Extension included for the 800W Model

-1 Apollo Wind Turbine
- 6x Blades
- Hub with 6 lots
- Nose Cone
- Screws and Nuts
- Degree Adjuster
- Allen Key
- Instruction Manual

Apollo 1000W 12V-24V AC ( 6 Blades )
Wind Turbine for Land or Marine Use

Product designed in Canada



I. Performance

Curves

The above battery charging power curve is obtained from charging a 12V 100Ah battery bank with
our SolarWind Hybrid Charge Controller (not included in this listing)

Blade Features

- Color: White
- With 60" swept area when mounted on a 5" Hub
- Incorporates highly efficient, true airfoil
- Quiet performance with minimal vibration
- Can generate 1000 watts or more depending on PMA efficiency
- Manufactured using a precision injection molding process that produces blades of exceptional consistency
- Made with new thermoplastic to increase durability
- Smoother and more durable than any blades you can find in the market
- Adjustable blade degree with included degree adjusters / shims (see picture below)
- High resistance to bending (over 150 degrees)

Material

Nylon 6.6 + Carbon Fiber (<20%)

Length

29 inches

Width (base)

6 inches

Mounting 6mm bolts

Weight (per blade)

340g, 12oz

Rotor Specification

Apollo Competitor's Pros
- 30mm rotor thickness, 150% more compare to competitor's
- Stronger Magnetic flux due to thicker rotor, and thus, more Power
- Evenly spread magnets decrease magnetic drag
- 6 balanced hole to reduce weight
- Reduce forces required to start rotor due to less reciprocation mass
- Brushless Permanent Magnet Alternator
Cons
- only 12mm in rotor thickness and thus weaker magnetic flux
- Magnets are not evenly spread out (ie: screw at top)
- No weight reduction = harder start up

Body Specification

Rotor Diameter

77mm

Magnet Material

Rare Earth Neodymium magnets

Number of Magnets

12

Magnet Width (Rotor thickness) 30mm

Weight

1.34kg

Reference picture ONLY.
Please refer to listing details on the actual model you are getting.

- Bigger body allow fitting of a more powerful alternator than competitor's
- Longer body and tail (62cm) allow the Apollo to face wind even if more blades are added while our competitor just spins round and round
- High surface area tail, 33cm in height, 30% more surface area will let the turbine stay focus to incoming wind
- Installation of 29" blades and capture 50% more wind is now possible

II. Anti-Vibration System [Same as above]
III. Anti-Leak System [Same as above]

IV. Generator Specification

Body Material Aluminum

Rotor Diameter 152.4cm (60 inches)
Starting Wind Speed 3.0m/s (7 mph)

Rated Wind Speed 13m/s
Survival Wind Speed 45m/s
Voltage 12 V-24V AC
Rated Power 900W

Maximum Power 1000W
Weight 9.3kg (20.5 lb)
Yaw Body / Tower Mount
Inner Diameter 53.3mm, 2.1 inch
Recommended Tower (Pipe) Size 1.5 inch schedule 40 pipe
Actual Pipe diameter: 48mm (1.9 inch)
Recommend adding 2.5mm padding

What are included:

Apollo 29" Extended Blades and Tail Extension included for the 1000W Model

-1 Apollo Wind Turbine
- 6x Blades
- Hub with 6 lots
- Nose Cone
- Screws and Nuts
- Degree Adjuster
- Allen Key
- Instruction Manual

Phoenix 400W 12V DC ( 3 Blades)
Wind Turbine for Land or Marine Use

Power curve: Performance curve of power output versus wind speed



Since wind speed increases with height, increases to the tower height can mean enormous increases in the amount of electricity generated by a wind turbine.




Body Material Aluminium

Rotor Diameter 117cm (46 inches)
Starting Wind Speed 3m/s (7 mph)

Rated Wind Speed 12.5m/s
Survival Wind Speed 45m/s
Voltage 12 V DC

Rated Power 300W

Maximum Power 400W
Weight 5kg
Mount Not included

Blade Specification:

Material Carbon Fiber
Length 58cm (23 inches)
Width (base) 12cm (4.5 inches )
Weight (per blade) 210g Features:
- Incorporates highly efficient, true airfoil
- Manufactured using a precision injection molding process that produces blades of exceptional consistency

Nose Cone Specification:


Material Plastic
Diameter 135 mm
Height 90mm
Mounting Locks on Hub

Thickness 3mm
Weight 80g Features:
- Reduce wind resistance
- Eliminates vortexes
- Greater stability
- Neighbor Friendly





12V Or 24V Wind Turbine charge controller

WARNING !!!

Rotating blades present the most serious mechanical hazard. The blades may be moving at velocities over 275 miles per hour (440 km/hr). At this speed, the tip of a blade is nearly invisible and can cause serious injury. Under no circumstances should you install the turbine where a
person could come in contact with moving rotor blades.

The installer of these blades is solely responsible for the use or misuse of these blades. We assume no liability for ANY injuries caused by these products.

Warranty:

We will warrant this unit against any manufacture defects or workmanship for 6 months from the date of purchase. This limited warranty specifically excludes damage caused by improper installation, accident, misuse, abuse, improper storage, or any unauthorized disassembly, repair, or modification.This warranty is not transferable. In the event of a claim against this warranty, the seller's obligation, and the claimant's sole remedy, shall be replacement of the product, repair, or refund of the original purchase price excluding any shipping and handling fees. All shipping and handling fees going both ways are responsible by the buyer.

NO OPERATING COST
GENERATES ELECTRICITY FROM THE ABUNDANT RESOURCE



Terms & Conditions Bidding this auction means that you agree with the following terms & conditions.
All pictures and descriptions are subjected to change without notice. Items may not look exactly the same as the auction shown. We are not responsible for any inadvertent errors.
Payment
Total payment = winning price + shipping & handling

Insufficient payment will be charge extra US$0.50 to compensate the Paypal penalty fees.
Shipping
&
Handling
Total shipping = Base S&H + Combine S&H ( for each additional item )
a) Base S&H is the highest shipping cost of the first item.

1. Combine shipments are only available on the condition of a SINGLE PAYMENT. Auctions that are paid separately will NOT be shipped in combo and therefore, they are not qualified for shipping discounts.

2. We ship within 2 working days after payment is received and confirmed. Please allow up to 5-10 BUSINESS DAYS for item(s) with a physical address sending to the 48 states of United States & Canada. For international bidders, the shipping time varies with respect to your location.

3. Bounce backs due to incorrect shipping address will result in setback on deliveries. It is the buyer's responsibility to repay the shipping & handling fees.

4. We are not responsible for any loses or damages resulting from shipping.

Duties & Tariff

1. No refunds after 30 days
2. Shipping & handling & other service fees are NOT refundable
3. All returned items must be in original packing.
4. Items that are used/ damaged/ deformed or altered in any ways will not be accepted.
5. A 20% restocking fee will be charged on all refunded items.

E-mails

1. E-mails are usually answered within 2~3 business days in priority order.
2. Spams and mass e-mailing will be deleted without slightest glance.
3. E-mails with virus or anything subjected to hacking are automatically deleted.
